Brand Name : Asiaprint
Model Number : AP-7C
Certification : CE
Place of Origin : In Guangzhou,China
MOQ : 1SET
Price : Negotiated
Payment Terms : Western Union, T/T, L/C
Supply Ability : 500 Set/Sets per Month
Delivery Time : 10-15 Work days
Packaging Details : Wooden case or Standard Export Carton
Warranty time : 12 months
Machine Type : Pneumatic
Working table : Dual
Usage : T-shirt
Color & Page : Multicolor
Automatic Pneumatic T Shirt Printing Equipment Double Station Textile
Technical Parameters
| Specification | |||||
| Model | AP-7C Automatic pneumatic double station T Shirt Heat Transfer Machine Textile | ||||
| Printing area | 16"*16" (40*40CM2) | 16"*20 (40*50CM2) | 16"*24" (40*60CM2) | 20"*28" (50*70CM2) | 24"*31" (60*80CM2) |
| Weight(KG) | 135 | 139 | 148 | 180 | 220 |
| Packing size(CM):L*W*H | 118*85*85 | 122*83*85 | 135*83*85 | 170*110*65 | 180*100*65 |
| Power(KW) | 2.2 | 2.5 | 3.0 | 5.0 | 6.5 |
| Voltage(V) | 220/110 | 220/380 | |||
| Temp. range(℃) | 0-399 | ||||
Feature
Eletromagnetic switch and ON/OFF timer
Auto control, auto walking and hot stamping
Non-stick Teflon coated upper platen
Even and stable pressure (pressure up to 8KG/CM²)
The upper plate is movable and the lower plate is fixed which ensure the garment will not be migrated
The upper plate heating uniform
Safe protection unit prevents operator being pressed

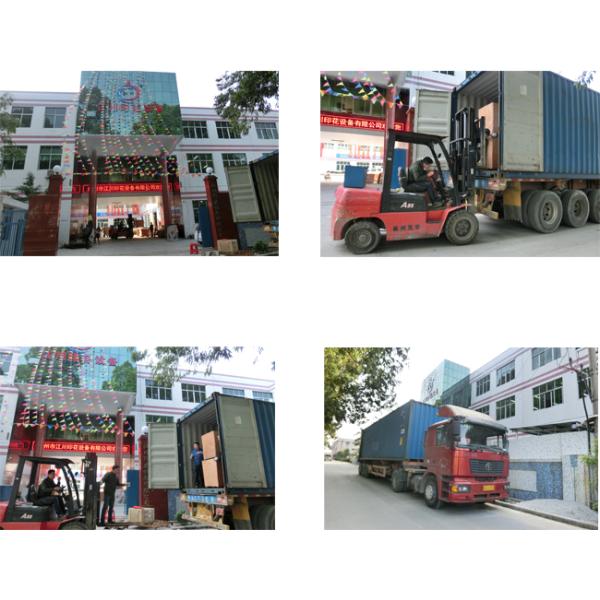

Delivery Process

Certifications

Detailed

|
|
Automatic Pneumatic T Shirt Printing Equipment Double Station Textile Images |
